CHILLER
|

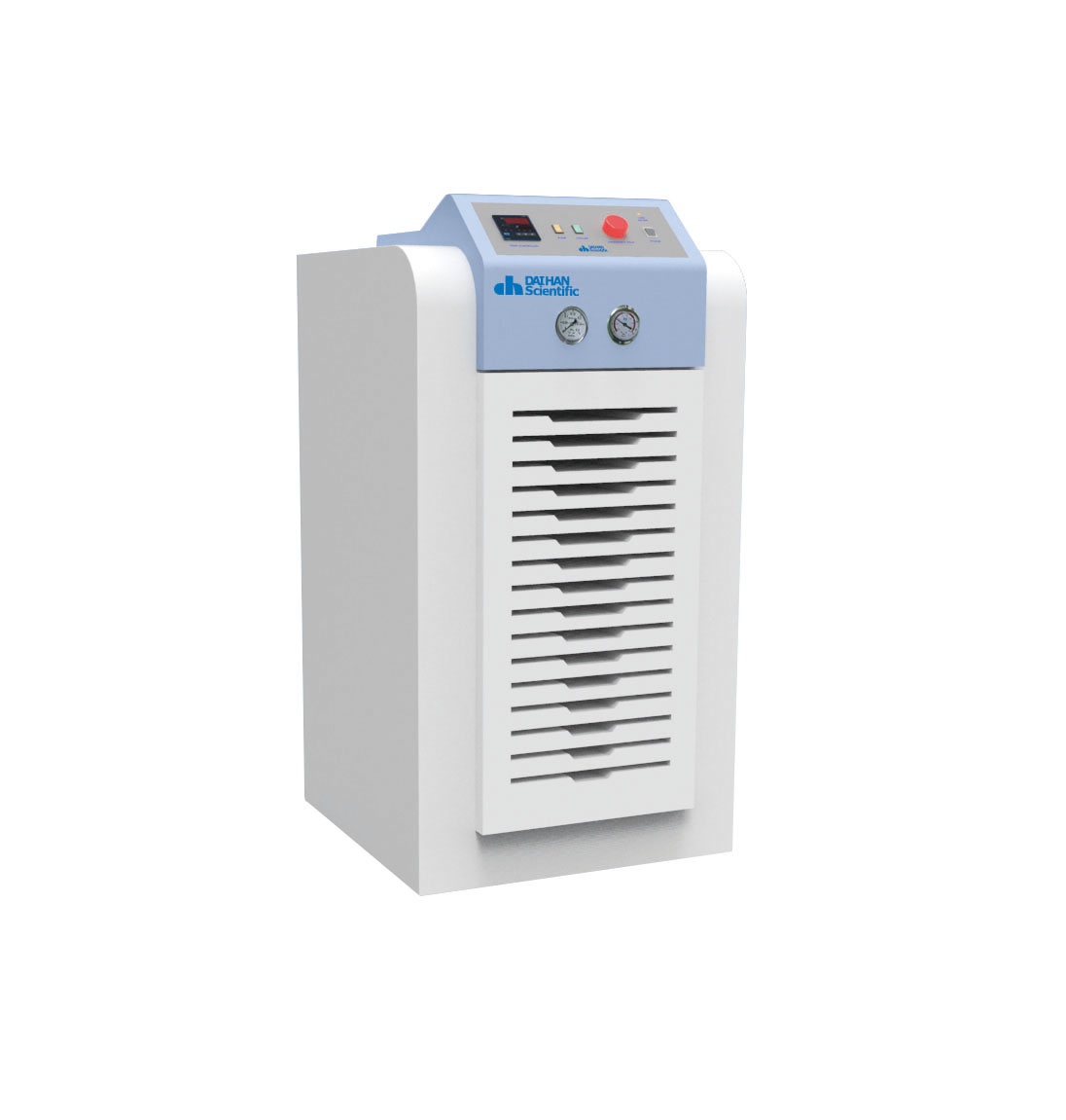

“MaXircuTM Chi-20” |
“MaXircuTM Chi-30” |
“MaXircuTM Chi-50” |
|
|
Temp. Range & Stability |
－20℃ ~ +40℃-Range, ±0.2℃(at 15℃)-Stability |
|||
|
Cool-Fluid. Filling Volume |
17 Lit. max |
29 Lit. max |
47 Lit. max |
|
|
Useful for 1~50Lit Evaporators, etc. |
for 1~20Lit Evaporator |
for 10~30Lit Evaporator |
for 20~50Lit Evaporator |
|
|
Refrigerator Capacity(HP) |
1/2 HP |
1 HP |
2 HP |
|
|
Lid & Top Opening Dia. |
Φ100 mm |
|||
|
Fluid In/Out-let Connector |
ISO RC 1/2" (English System AG 1/2") Thread, Stainless-steel |
|||
|
Pump Power, Lift Height, m |
Max. Flow Rate |
20 Lit/min |
30 Lit/min |
|
|
Max. Pressure & Lift |
1.0 bar Max. Lift : 8m |
3.3 bar Max. Lift : 27m |
||
|
Cooling Capacity |
at +20℃ |
1.7 kW |
2.8 kW |
6.5 kW |
|
at 0℃ |
0.87 kW |
1.3 kW |
3.0 kW |
|
|
at －20℃ |
0.32 kW |
0.45 kW |
1.2 kW |
|
|
External Dimension |
450×630×h650 mm |
550×830×h975 mm |
605×975×h1265 mm |
|
|
Material |
Stainless steel-Internal, Powder Coated steel-External |
|||
|
Electrical Reqts. |
1 Phase 230V, 50 / 60 Hz or 3Phase 380V |
|||
|
Cat. No. |
230V |
DH.Chi0020 |
DH.Chi0030 |
- |
|
3 Phase |
- |
- |
DH.Chi0050 |
|
|
|
|
|
|
|
