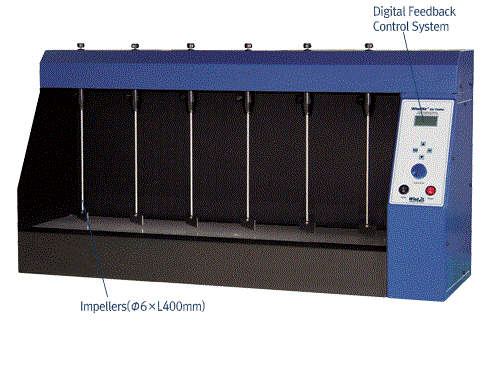

JAR TEST
JAR TEST
|
Model |
Shaft : Φ8×L400mm “JT - M6C” |
|
6×Paddler (Stainless steel Shaft) |
Φ8×L400mm |
|
Straight Blade w75×h25mm |
|
|
Stirring Capacity |
6×1 Liter Beaker |
|
Motor |
Geared DC Motor (10:1 ratio), 40W |
|
Speed |
20~300 rpm |
|
Speed Accuracy |
±5 rpm |
|
Timer |
99hr 59min 59sec (Programmable) |
|
Display |
Digital LCD with Back-Light Function |
|
Controller |
Programmable Digital Feedback Controller with Jog-Shuttle Switch (Turn + Push) |
|
Program Function |
10 Steps, 6 Programs |
|
Florescent Lamp |
20W×6 (Independent Light Source for Each Sample) |
|
Dimension (w×d×h) (mm) |
1,000×310×535 |
|
Safety Device |
Overload & Over Heat Protector for motor |
|
Others |
CE Certified PL (Product Liability) Insurance Storage Function (RPM, Timer) |
|
Packing Dimension (w×d×h) (mm) |
1,120×430×740 |
|
Gross Weight |
69 kg |
|
Power Consumption |
40 W |
|
Power Supply & Cord Plug* |
1 Phase, AC 120 V, 60 Hz or AC 230 V, 50 / 60 Hz |
