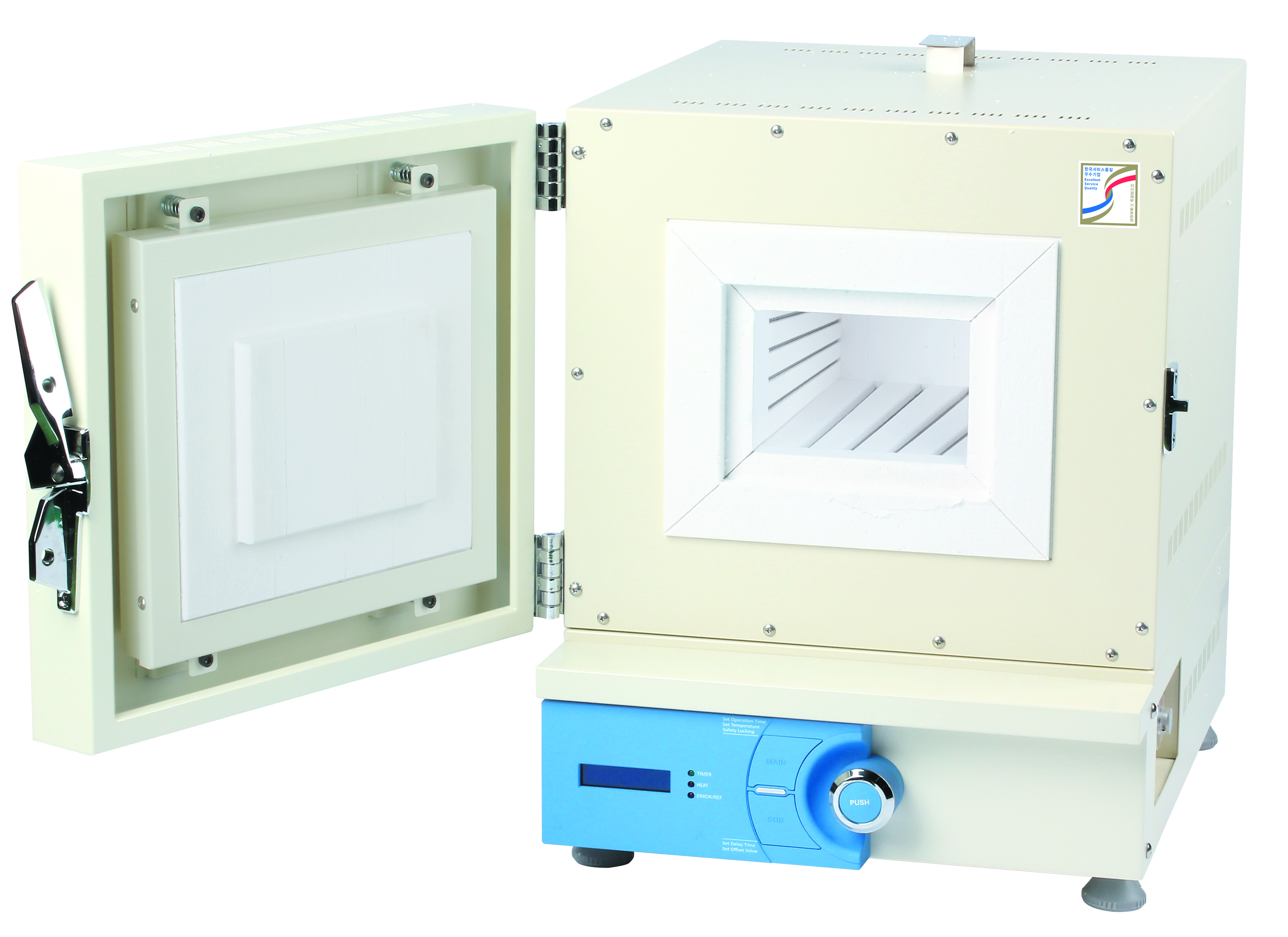

KÜL FIRINI
KÜL FIRINI (1200 C)
|
“FHX-03” |
“FHX-05” |
“FHX-12” |
“FHX-14” |
“FHX-27” |
“FHX-63” |
|
|
Temp. Range |
300℃ ~ 1200℃ |
||||||
|
Capacity |
3 Lit. |
4.5 Lit. |
12 Lit. |
14 Lit. |
27 Lit. |
63 Lit. |
|
|
Heater |
Kanthal A1, Expose Wire Heating Elements, 4-Side Heating |
||||||
|
Thermocouple |
K-type Thermocouple |
||||||
|
Heating Power |
1.6 kW |
1.7 kW |
3.3 kW |
4.0 kW |
4.6 kW |
9 kW |
|
|
Required time to be reached 800℃ |
16 min |
20 min |
23 min |
||||
|
Timer & Alarm |
99hr 59min (Continuous run), Error status & Timer-end |
||||||
|
Display |
Digital LCD with Back-Light Function |
||||||
|
Controller |
Digital PID Controller with Jog-Dial Switch (Turn+Push) |
||||||
|
Program Function |
4 Patterns with 10 Segments |
||||||
|
Safety Circuit |
Over-Temp./-Current protection, Sensor Error Detection Safety Switch for Door Opening |
||||||
|
Material |
Ceramic Fiber with Heating Wire-Internal, Powder Coated steel-External Ceramic Fiber-Insulation |
||||||
|
Dimension (w×d×h) |
Internal (cm) |
13×25×9 |
15×30×10 |
20×30×20 |
25×35×16 |
30×30×30 |
40×40×40 |
|
External (cm) |
41×48×53 |
44×53×55 |
50×55×66 |
55×59×62 |
60×59×76 |
100×75×95 |
|
|
Packing Size(w×d×h) (cm) |
63×54×77 |
68×57×78 |
70×63×89 |
74×68×85 |
74×73×99 |
116×90×110 |
|
|
Gross Weight |
47 kg |
54 kg |
59 kg |
73 kg |
83 kg |
225 kg |
|
|
Electrical Reqts. |
1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz |
1 Phase AC 120V, 60Hz or AC 230V, 50/60Hz or 3 Phase |
|||||
|
Cat. No. |
230V |
DH.WFH22.03 |
DH.WFH22.05 |
DH.WFH22.12 |
DH.WFH22.14 |
DH.WFH22.27 |
DH.WFH22.63 |
|
120V |
DH.WFH20.03 |
DH.WFH20.05 |
DH.WFH20.12 |
DH.WFH20.14 |
DH.WFH20.27 |
DH.WFH20.63 |
|
|
3Phase |
- |
- |
DH.WFH23.12 |
DH.WFH23.14 |
DH.WFH23.27 |
DH.WFH23.63 |
|
|
Price, Each. ￦ |
1,691,000 |
1,950,000 |
2,733,000 |
2,820,000 |
4,405,000 |
7,121,000 |
|
