Yatık Tip Otoklavlar

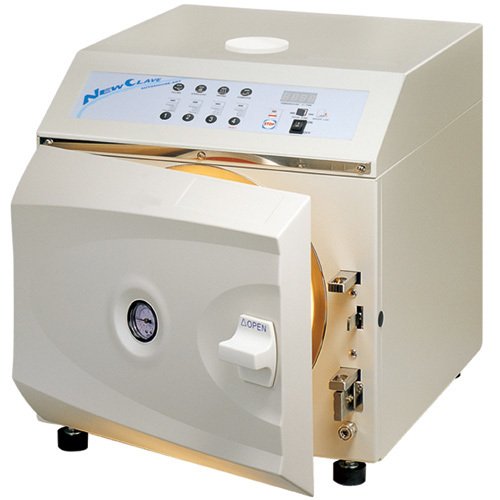

Masaüstü Otoklav
|
Vacuum type |
Non-Vacuum type |
Capacity: 17 &22 liters |
|
|
Load weight: 5 kg approximate |
|
|
Operating Pressure : 15 PSI / 121°C 30 PSI / l 34°C |
|
|
Chamber Diameter : 240 mm |
|
|
Chamber length: 360mm |
|
|
Maximum instrument length: 300mm |
|
|
Overall productl: L530 x W390 x H420 mm |
|
|
Water reservoir capacity : 4.5 liters (4,500 c.c .) |
|
|
Program l (Unwrapped) l 34°C/ 4min, 4 minutes sterilizing at l 34°C, 30 minutes drying |
|
|
Program 2 (Pouches) l 34°C/ l 8min, 18 minutes sterilizing at l 34°C, 30 minutes drying |
|
|
Program 3 (Liquids) l 21°C/ 30min, 30 minutes sterilizing at l34°C, no drying process |
|
|
Program 4 (Packs) 121°C/ 30min, 30 minutes ste rilizing at 121°C, 30 minutes drying |
|
|
Voltage options |
230V |
230V or 115V |
Net Weight |
41 kgs |
39 kgs |
Gross Weight |
49 kgs |
46 kgs |
Standard Package |
Waterfilter Water tube ( 2.5M tor draining water) Spanner Watertray Tray Rack Tray handle |
