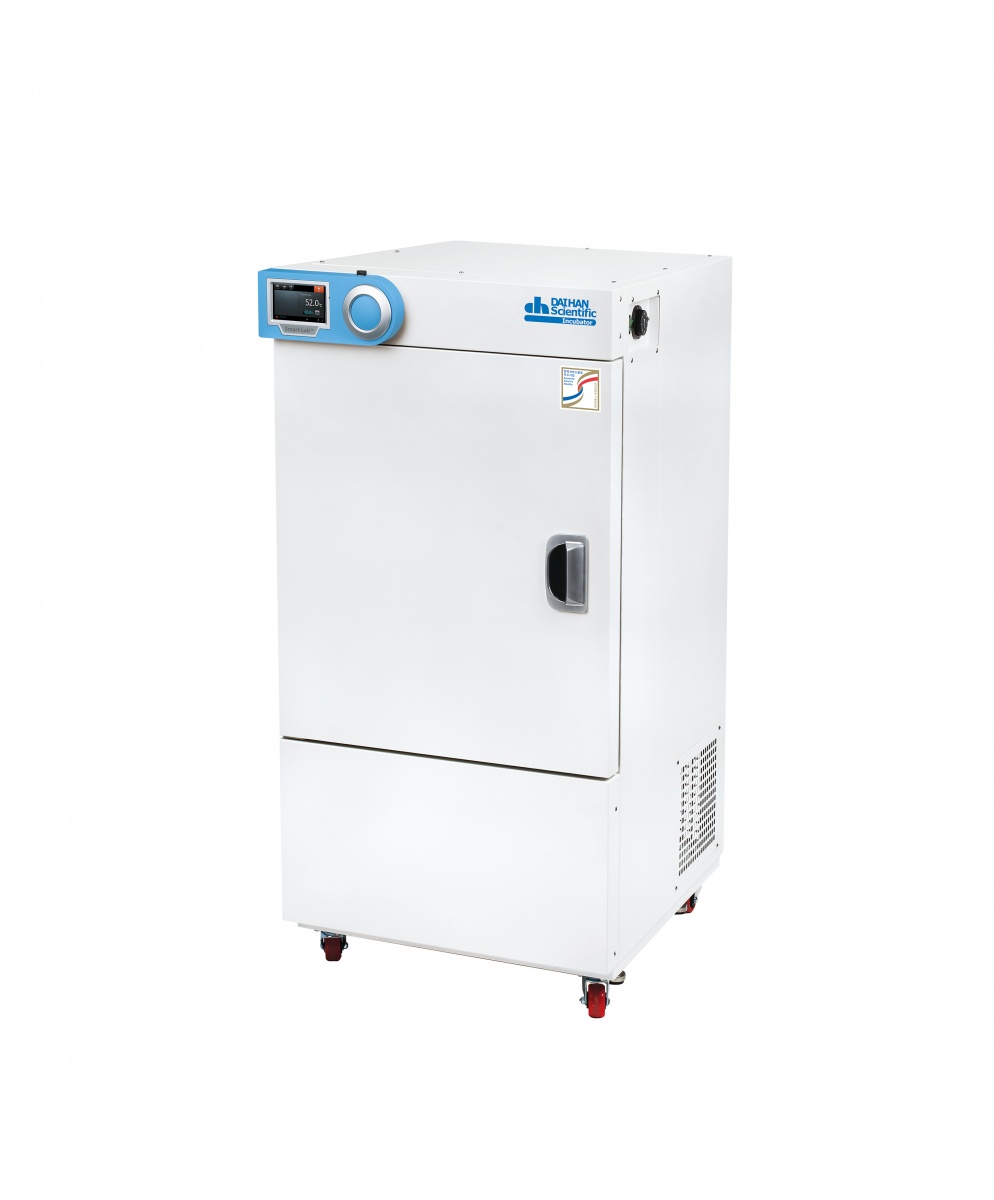

SOĞUTMALI İNKÜBATÖR
SMART-LAB CONTROLLER
|
Models |
ThermoStable SIR-150 |
ThermoStable SIR-250 |
ThermoStable SIR-420 |
ThermoStable SIR-700 |
|
|
Capacity |
150 Lit. |
250 Lit. |
420 Lit. |
700 Lit. |
|
|
Air Flow-type |
Forced Convection-type |
||||
|
Temp. Range & Accuracy |
0 ℃ ~ 60 ℃, ± 0.2℃ at 37℃ |
||||
|
Temp. Uniformity & Sensor |
±0.5℃ at 37℃, ±1.4℃ at 50℃, PT100 Sensor |
||||
|
Heat-up Time |
20 min. to 37 ℃ 20 min. to 50 ℃ |
35 min. to 37 ℃ 35 min. to 50 ℃ |
|||
|
Recovery Time (Door open 30sec) |
10 min. to 37 ℃ 12 min. to 50 ℃ |
12 min. to 37 ℃ 15 min. to 50 ℃ |
|||
|
Heating Power/Consumption |
700 W |
1 kW |
1.2 kW |
2 kW |
|
|
Compressor |
1/4 HP |
1/3HP |
1/2 HP |
1/2HP |
|
|
Compressor Control |
Intelligent Control of Refrigerator for preventing Overload of Compressor |
||||
|
Refrigerant |
CFC-Free(R-404A) Refrigeration System |
||||
|
Timer & Alarm |
99hr 59min (with delay / Continuous run.), Error status & Timer-end |
||||
|
Display |
4″Full Touch Screen TFT LCD |
||||
|
Controller |
Smart-LabTM Controller |
||||
|
Inner Door |
with 1ea of Inner Tempered Glass Door |
||||
|
Shelves |
Included 3ea of Teflon-coated steel Shelves |
||||
|
Permitted Total Load |
Total Load : 48 kg (16kg×3 Shelves) |
||||
|
Safety Circuit |
Over Temp. and Over Current Protector, Sensor Error Detector |
||||
|
Material |
Internal : Stainless steel (＃304), External : Powder Coated steel |
||||
|
Dimension (w×d ×h) |
Interior (mm) |
505×505×610 |
505×505×1,000 |
705×605×1,000 |
800×700×1,250 |
|
Exterior (mm) |
640×832×1,313 |
640×832×1,703 |
840×932×1,753 |
935×1,027×2,000 |
|
|
Net Weight |
118 kg |
157 kg |
202 kg |
234 kg |
|
|
Packing Size (w×d×h) (mm) & Gross Weight |
900×1,000×1,650 191 kg |
900×1,000×2,040 217 kg |
1,100×1,100×2,140 277 kg |
1,220×1,220×2,260 313 kg |
|
|
Power Consumption |
1.6 kW |
1.8 kW |
2.3 kW |
2.4 kW |
|
|
Power Supply & Cord/Plug* |
1 Phase, AC 120 V, 60 Hz or AC 230 V, 50 / 60 Hz |
||||
